Offer

Homeowner/Landowner Riders

R 316TX

$12,790.00Rec. retail price incl. GST $13,290.00SKU: 970542710
  • Power/fuel typePetrol
  • Cutting width, min94 cm

HOT PRICE

Save up to $700! This season take advantage of hot prices on selected Wheeled products for a limited time!*

Terms & Conditions: *Offer effective 01/09/24 - 31/12/24, at participating Husqvarna Dealers and Husqvarna.com/nz only, while stocks last. Valid for the following models only - Garden Tractors - TS112, TS114, TS142T, TS142TXD, TS242TXD, TS248TXD, TS354, TC138T. TC114 & TC242TX. Zero-Turns - Z146, Z242E & Z242F. Riders - R214TC, R316TX-CC103 & R316TSXAWD-CC12. CLICK HERE for more info & offers.

Product description

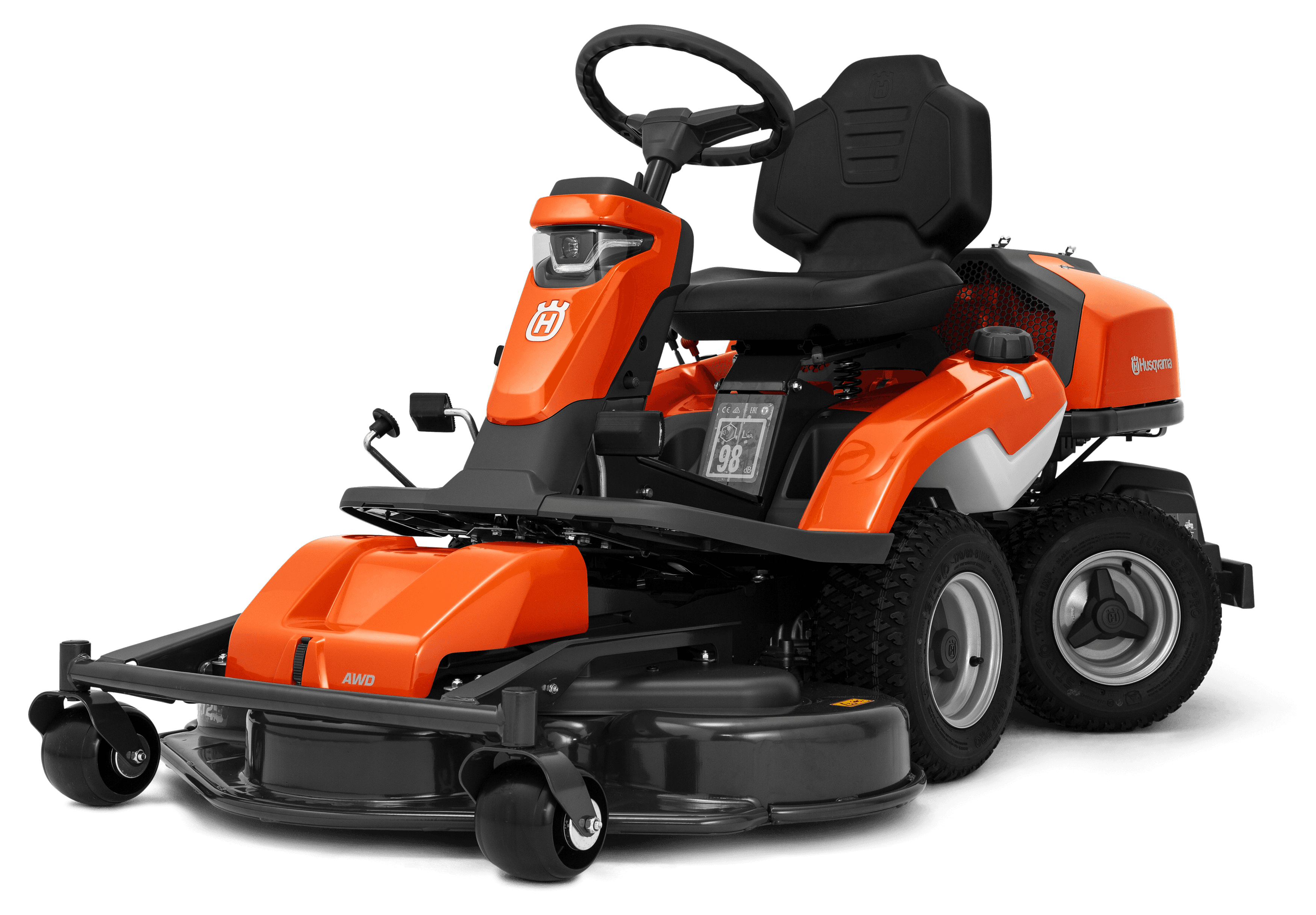

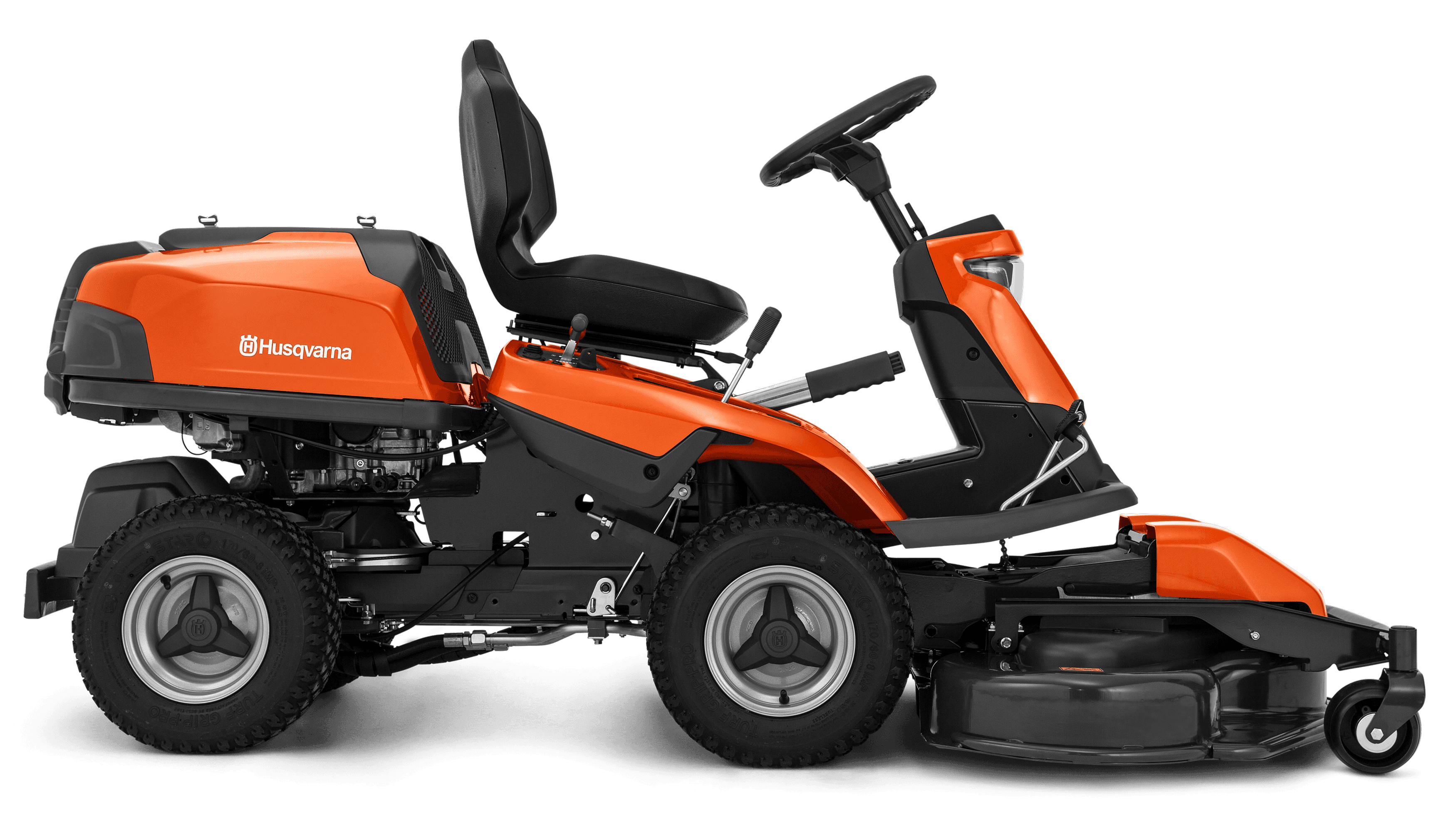

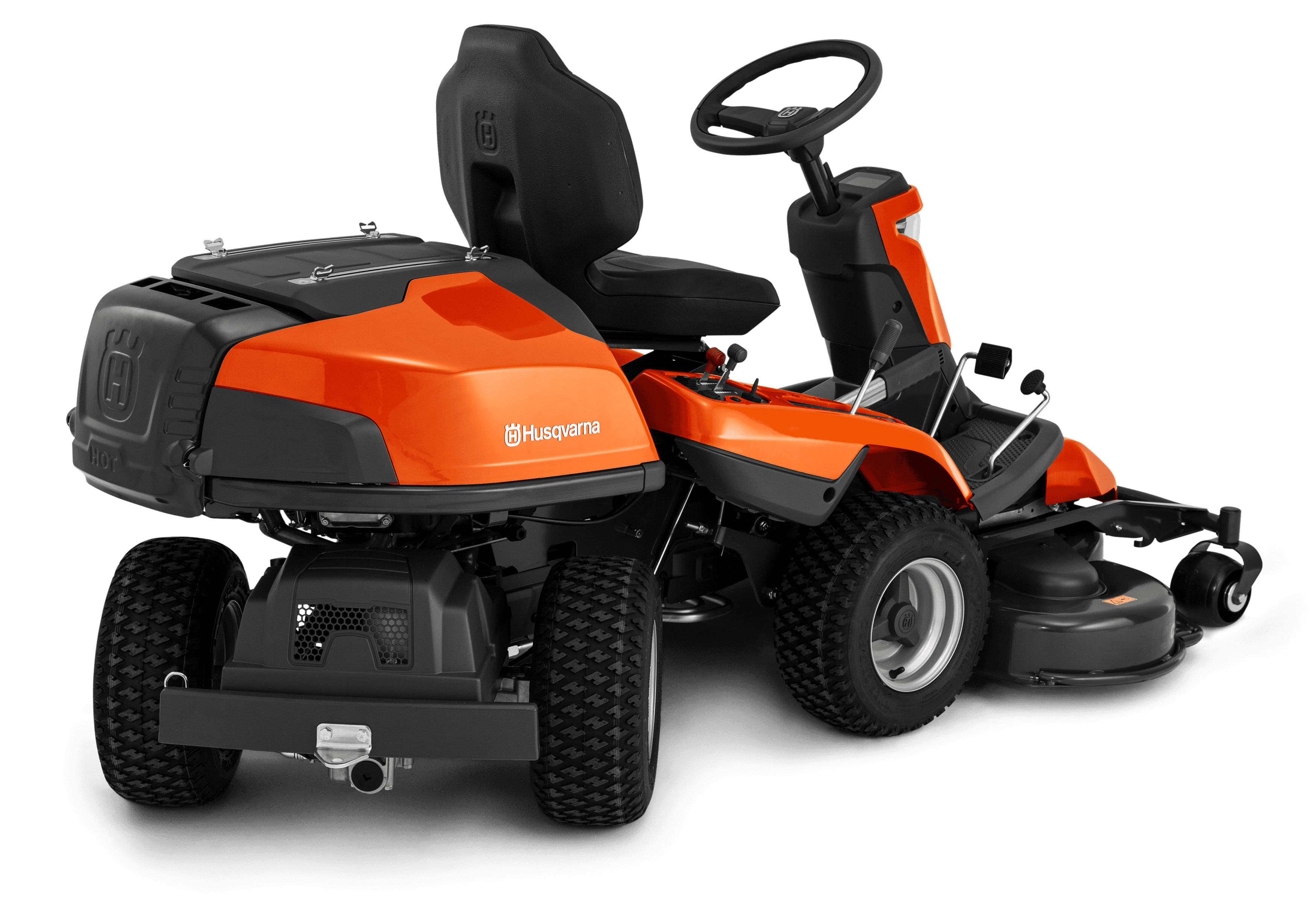

When taking on challenging lawns, you need a high-performance ride-on lawn mower with a wide range of accessories available. Husqvarna R 316TX comes with a V-twin engine and 103cm combi cutting deck with the option of BioClip® mulching or rear ejection. The articulated steering makes tight turns smooth, while LED headlights provide greater visibility. Integrated rails on the engine hood make it easy to attach accessories like cargo holder. Ready for Husqvarna Connect with Bluetooth®.

5-year warrantyFinance options

Product Information

Features (28)

For greater ergonomics and comfort a telescopic steering column allows the steering wheel height to be adjusted. image

Adjustable steering wheel

Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort.

The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn. image

Floating cutting deck

The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.

Hour meter with service minder indicates when it's time to service your lawn mower, making it easy to keep it in the best condition. image

Hour meter with service minder

Indicates when it's time to service your lawn mower, making it easy to keep it in the best condition.

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride on uneven surfaces. image

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels also on uneven surfaces.

The attachment frame facilitates versatile use and makes it easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower. image

Attachment frame

The attachment frame makes it easy to shift between cutting decks and front-mounted attachments.

Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces. image

Four large wheels

Equally sized wheels for a comfortable ride

The intuitive HMI display provides real-time data and guides through visual symbols and warning sounds to facilitate the driver's work. image

HMI Display

The intuitive HMI display guides through visual symbols and warning sounds to facilitate the driver's work.

A wide range of attachments will make your front mower exceptionally versatile, all year round. image

Attachments for versatile usage

A wide range of cutting decks and attachments will make your front mower versatile, all year round.

This Rider is fitted with a Combi cutting deck for efficient BioClip® (mulching) and rear ejection cutting. image

Combi cutting deck

Combi cutting deck

The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work. image

Automatic blade engagement

The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.

Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control. image

Pedal-Operated Transmission

Speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing. image

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Large, transparent fuel tank makes it easy to check the fuel level and plan your work accordingly. image

Transparent fuel tank

Large, transparent fuel tank makes it easy to check the fuel level and plan your work accordingly.

Thanks to the rear-mounted engine, you get a better overview of the mowing and less noise and emissions in the driver’s area. image

Engine behind driver

The rear-mounted engine provides a better overview of the mowing, and less emissions in the driver’s area.

The open left storage makes it easy to access your items while mowing. image

Storage compartment

The open left storage makes it easy to access your items while mowing.

Convenient bottle holder for refreshments. image

Bottle holder

Convenient bottle holder for refreshments.

Thanks to the external fuel cap, you don't have to open the engine hood when refueling. The extra wide fuel tank opening makes refueling even easier. image

External fuel cap

Thanks to the external fuel cap, you don't have to open the engine hood when refueling.

Dual LED lights for enlarged lighted area and safer operation in darker conditions. image

Dual LED lights for improved visibility.

Dual LED lights for improved visibility.

The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock. image

Articulated steering

The articulated steering gives excellent maneuverability and facilitates driving around obstacles.

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user. image

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides.

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc. image

Front-mounted cutting deck

Front-mounted deck for optimum accessibility

The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damage to the lawn surface. image

Pivoting support wheels

The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns.

BioClip® (mulching) cuts the grass into fine pieces that quickly decompose and become a natural fertiliser, providing excellent results on frequently cut areas. image

BioClip®

BioClip® (mulching) cuts the grass into fine pieces that quickly decompose and become a natural fertiliser

The tilting hood and easy-access servicing points make maintenance and servicing easy. image

Easy-access service points

The tilting hood and easy-access servicing points make maintenance and servicing easy.

The cutting deck can be tilted up into service position for easy access during cleaning or service. image

Service position

The cutting deck can be tilted up into service position for easy access during cleaning or service.

12V socket outlet makes it possible to plug in extra electric equipment, charge your cellular phone etc. image

12V socket outlet

12V socket outlet makes it possible to plug in extra electric equipment, charge your cellular phone etc.

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play. image

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to tips, manuals and spare part recommendations. The app also provides additional information such as runtime and charging status as well as maintenance and service needs.

Controls are easily accessible and designed for optimum user comfort. image

Easy-access controls

Controls are easy accessible and designed for optimum user comfort.

Specifications

Art No: 970542710
Output shaft power9.6 kW
Weight (excl. cutting equipment)240 kg
Cylinder displacement603 cm³
Weight (complete product w/o side packed articles)240 kg
Fuel tank volume12 l
Sound pressure level at operators ear86 dB(A)
Base machine, height118.1 cm
Base machine, length204.4 cm
Base machine, width88.3 cm
Battery capacity24 Ah
Battery pack weight7.2 kg
Battery voltage12 V
Cutting height max75 mm
Cutting height min25 mm
Cutting width, max112 cm
Cutting width, min94 cm
Fuel consumption349 g/kWh
Fuel tank volume3.17 gal (US)
Gross weight towed125 kg
Ground clearance120 mm
Net power at preset rpm2900 rpm
Net power at preset rpm Energy9.6 kW
Sound power level, guaranteed (LWA)98 dB(A)
Sound power level, measured97 dB(A)
Speed forward max9 km/h
Speed reverse max8.0 km/h
Uncut circle30 cm
Vibration level seat0.7 m/s²
Vibration level steering wheel2.5 m/s²
Wheelbase88.7 cm
